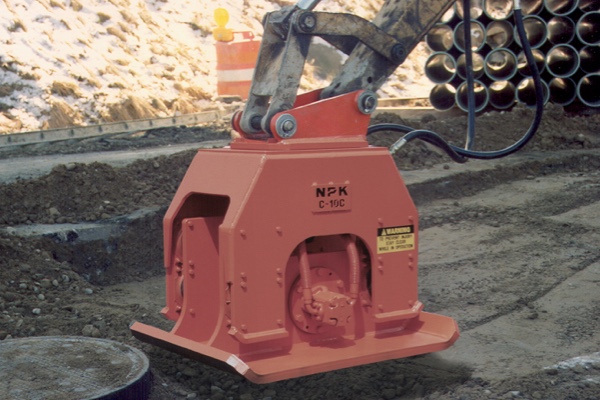

The C10C plate compactor is compatible with excavators in the 30-50 ton range. Compatible on John Deere excavator sizes 270-380.


More Info

Recommended Carrier Weight 30 - 50 US tons 27 - 45 metric tons
Working Weight fixed: 3,400 lbs swivel: 3,615 lbs fixed: 1,542 kg swivel: 1,640 kg
Impulse Force 34,000 lbf
Cycles per Minute 2,200 rpm
Oil Flow 51 gpm 193 lpm
Operating Pressure 2,000 - 2,500 psi 138 - 172 bar
Relief Pressure Setting 2,600 psi 179 bar
Swivel Feature optional
Baseplate Dimensions 40 x 52 in 1,016 - 1,321 mm
Compaction Area 14.5 sq ft 1.3 sq m
Height 50 in 1,270 mm
Width 40 in 1,016 mm
Chuck Opening N/A
Chuck Oil Flow N/A
Chuck Pressure N/A
