New C2D

NPK Compactors
C2D
REQUEST A QUOTE

The C2D plate compactor is compatible with backhoes and/or mini excavators in the 2.5-6 ton range. Compatible on John Deere mini excavator sizes 27-50


More Info

Recommended Carrier Weight 2.5 - 6 US tons 2.3 - 5.4 metric tons
Working Weight fixed: 390 lbs fixed: 177 kg
Impulse Force 3,500 lbf
Cycles per Minute 2,400 rpm
Oil Flow 13 gpm 49 lpm
Operating Pressure 1,500 - 2,000 psi 103 - 138 bar
Relief Pressure Setting 2,500 psi 172 bar
Swivel Feature N/A
Baseplate Dimensions 12 x 25 in 305 x 635 mm
Compaction Area 2.1 sq ft 0.2 sq m
Height 28 in 711 mm
Width 12 in 305 mm
Chuck Opening N/A
Chuck Oil Flow N/A
Chuck Pressure N/A

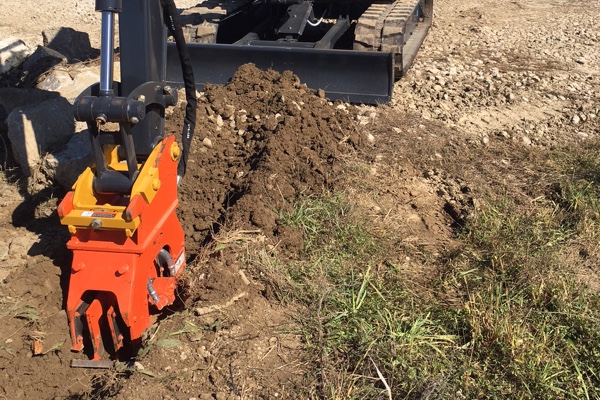

NPK C2D Plate Compactor / Driver - Compacting Soil

NPK C2D Plate Compactor / Driver on Deere 27D - Compacting Soil

NPK C2D Plate Compactor / Driver - Compacting for Road Repair
