New C3D

NPK Compactors

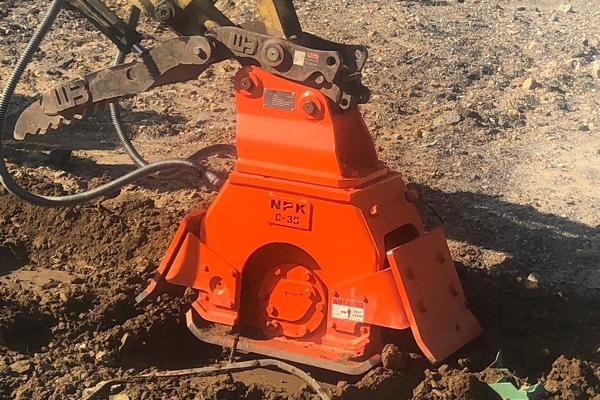

C3D
REQUEST A QUOTE

The C3D plate compactor is compatible with backhoes and/or mini excavators in the 3.5-9 ton range. Compatible on John Deere mini excavator sizes 30-85 and the John Deere 310-710 backhoes


More Info

Recommended Carrier Weight 3.5 - 9 US tons 3.2 - 8.2 metric tons
Working Weight fixed: 700 lbs swivel: 800 lbs fixed: 318 kg swivel: 363 kg
Impulse Force 6,000 lbf
Cycles per Minute 2,200 rpm
Oil Flow 16 gpm 61 lmp
Operating Pressure 1,950 - 2,450 psi 134 - 169 bar
Relief Pressure Setting 2,600 psi 179 bar
Swivel Feature optional
Baseplate Dimensions 17 x 28 in 432 x 711 mm
Compaction Area 3.3 sq ft 0.3 sq m
Height 29 in 735 mm
Width 17 in 432 mm
Chuck Opening N/A
Chuck Oil Flow N/A
Chuck Pressure N/A

NPK C3D Plate Compactor / Driver with Backfill Blade - Backfilling & Compacting Soil

NPK C3D Plate Compactor / Driver on Komatsu - Backfilling & Compacting After Utility Repair

NPK C3D Plate Compactor - Compacting for Sidewalk Repair
