New C8C

NPK Compactors
C8C
REQUEST A QUOTE

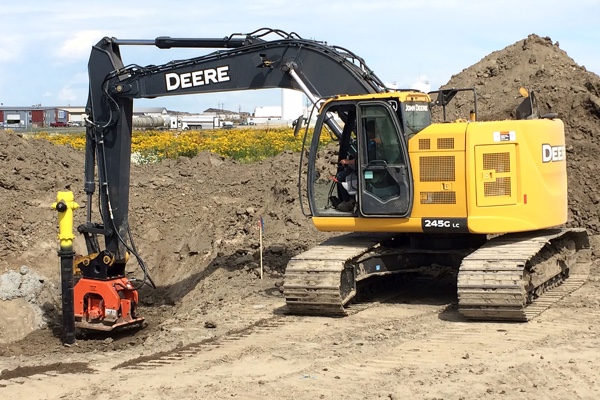

The C8C plate compactor is compatible with excavators in the 15-32.5 ton range.   Compatible on John Deere excavator sizes 160-345


More Info

Recommended Carrier Weight 15 - 32.5 US tons 13.6 - 29.5 metric tons
Working Weight fixed: 2,100 lbs swivel: 2,325 lbs fixed: 953 kg swivel: 1,055 kg
Impulse Force 24,000 lbf
Cycles per Minute 2,200 rpm
Oil Flow 43 gpm 163 lpm
Operating Pressure 2,000 - 2,500 psi 138 - 172 bar
Relief Pressure Setting 2,600 psi 179 bar
Swivel Feature optional
Baseplate Dimensions 34 x 46 in 864 - 1,169 mm
Compaction Area 10.9 sq ft 1 sq m
Height 45 in 1,143 mm
Width 34 in 864 mm
Chuck Opening N/A
Chuck Oil Flow N/A
Chuck Pressure N/A

NPK C8C Plate Compactor / Driver - Driving on River Bank for Erosion Control

NPK C8C Plate Compactor / Driver - Driving Pipes
