New GH10

NPK Hammers
GH10
REQUEST A QUOTE

The GH10 hydraulic hammer is compatible with excavators in the 23-33 ton range. Compatible on John Deere excavator sizes 210-350, with the most common size being the 250


More Info

Working Weight 4,690 lbs 2,125 kg
Recommended Carrier Weight 23 - 33 US tons 20.9 - 30 metric tons
Impact Energy Class 4,000 ft lbs
Impact Frequency 400 - 550 bpm
Oil Flow 44 - 55 gpm 165 - 210 lpm
Operating Pressure 2,600 psi 180 bar
Tool Diameter 5.4 in 136 mm
Tool Working Length 24.4 in 620 mm

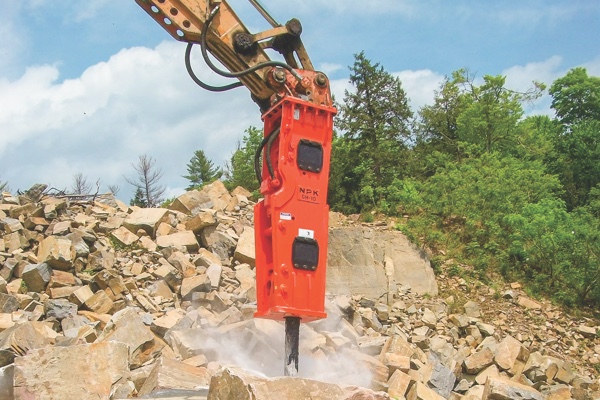

NPK GH10 Hydraulic Hammer - Primary Breaking for Site Prep

NPK GH10 Hydraulic Hammer - Breaking Oversize Rock
