New GH6

NPK Hammers
GH6
REQUEST A QUOTE

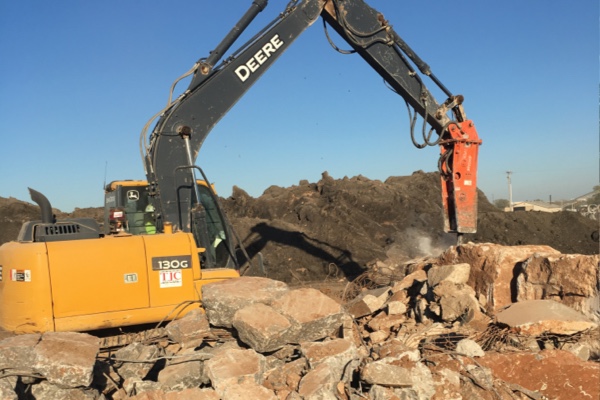

The GH6 hydraulic hammer is compatible with backhoes and/or excavators in the 11-15.5 ton range. Compatible on the John Deere 135 excavator and the 710 backhoe.


More Info

Working Weight 2,500 lbs 1,135 kg
Recommended Carrier Weight 11 - 15.5 US tons 10 - 13.8 metric tons
Impact Energy Class 2,000 ft lbs
Impact Frequency 460 - 800 bpm
Oil Flow 24 - 40 gpm 90 - 150 lpm
Operating Pressure 2,400 psi 165 bar
Tool Diameter 4.2 in 106 mm
Tool Working Length 19.7 in 500 mm
