New PH1

NPK Hammers
PH1
REQUEST A QUOTE

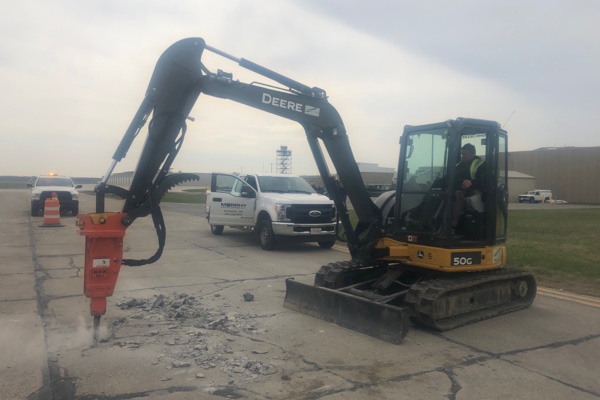

The PH1 hydraulic hammer is compatible with skid steers, backhoes and/or mini excavators in the 2-3.5 ton range. Compatible on John Deere mini excavator sizes 17– 35, the most common size is the 17.


More Info

Working Weight 500 lbs 225 kg
Recommended Carrier Weight 2 - 3.5 US tons 1.8 - 3.2 metric tons
Impact Energy Class 500 ft lbs
Impact Frequency 500 - 1,200 bpm
Oil Flow 7 - 16 gpm 25 - 60 lpm
Operating Pressure 2,465 psi 170 bar
Tool Diameter 2.6 in 66 mm
Tool Working Length 15.1 in 384 mm
