New PH4

NPK Hammers
PH4
REQUEST A QUOTE

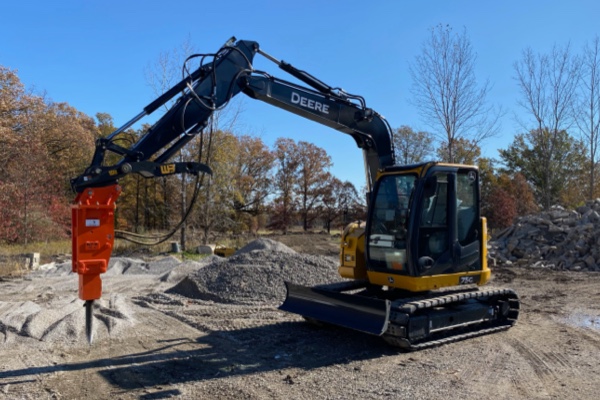

The PH4 hydraulic hammer is compatible with skid steers, backhoes and/or mini excavators in the 6-9 ton range. Compatible on John Deere mini excavator sizes 50-85, with the most common size being the 85.  Also compatible with all John Deere skidsteers, and 310-410 backhoes


More Info

Working Weight 1,235 lbs 560 kg
Recommended Carrier Weight 6 - 9 US tons 5.4 - 8.2 metric tons
Impact Energy Class 1,300 ft lbs
Impact Frequency 400 - 1,000 bpm
Oil Flow 13 - 32 gpm 50 - 120 lpm
Operating Pressure 2,465 psi 170 bar
Tool Diameter 3.4 in 86 mm
Tool Working Length 18.5 in 469 mm
